How To Calculate Modulation Transfer Function. It covers mtf measurements compared with the ideal diffraction limit, how mtf can be used to compare objective lens performance and considerations for its application in optical design for scientific instruments. Mtf represents the spatial equivalent of the frequency response of the.
Modulation transfer function (MTF) analysis. Left zoomed versions of from www.researchgate.net
Using these measurements, calculate the modulation of each spatial frequency using equation [1] (and propagating uncertainties) and make a plot of the mtf versus spatial frequency. Figure 2.6 shows a common type of mtf curve, which describes the modulus of the optical transfer function (contrast) vs. Point spread function and modulation transfer function engineering.
That Is, Mtf(U) = C’(U) / C(U).
The exact tilting is of no importance, it is advisable to have a tilt of minimum 2 o and maximum 10 o w.r.t. The vertical edge needs to be slightly tilted with respect to the columns of the sensor. It is important to understand several terms before we can fully describe mtf.
Here Is What I Had Done:

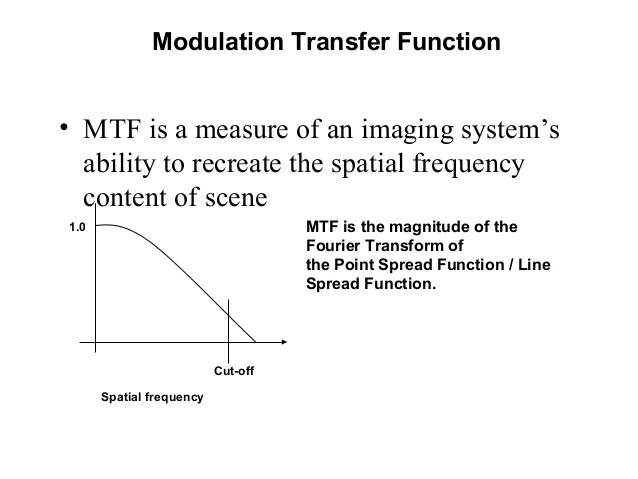

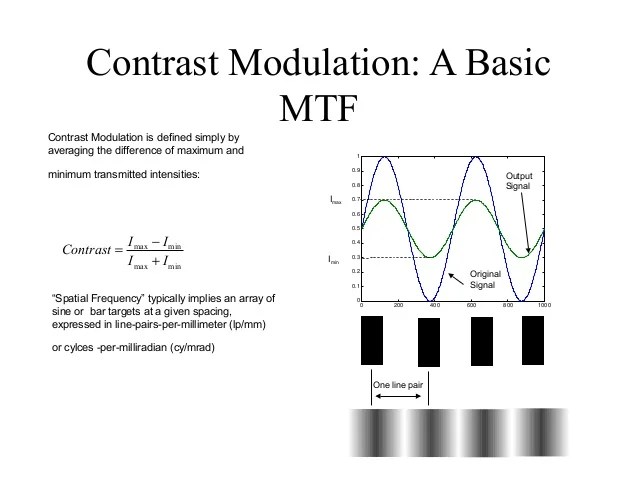

The mtf, or modulation transfer function, is defined as the ratio of the image contrast to the target contrast, expressed as a function of spatial frequency. The modulation transfer function (mtf) is the spatial frequency response of an imaging system or a component. How mtf is calculated and the limits of mtf are detailed in section 3.2;
Carlson Center For Imaging Science In Partial Ful Llment Of The Requirements For The Doctor Of Philosophy Degree At The Rochester Institute Of Technology Abstract.

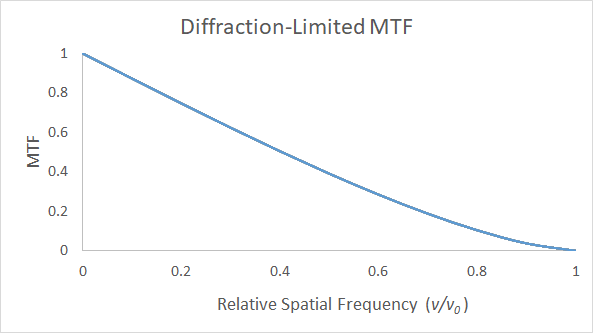

This whitepaper describes modulation transfer function (mtf) in depth. 10 𝑀𝑇𝐹𝜌= 2 𝜌 cos−1 𝜌 2𝜌0 − 𝜌 2𝜌0 1− 𝜌 2𝜌0 2 𝜌≤2𝜌0 0, otherwise Mtf stands for modulation transfer function.
The Modulation Transfer Function (Mtf) Is The Magnitude Of The Otf.

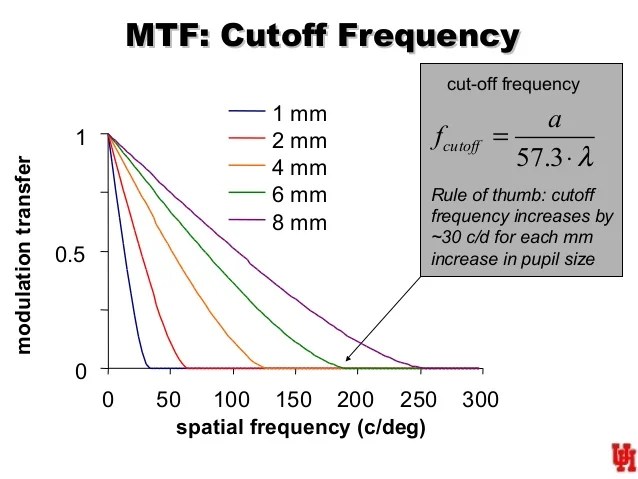

These curves offer a composite view of how optical aberrations affect performance at a set of fundamental parameters set by application need. Modulation transfer function devices and applications. Cycles per millimeter is also called lines per millimeter.
With This Method, The Presampling Mtf Is Determined By The Fourier Transform Of A ;Finely Sampled' Line Spread.
You can proceed as follow: Now we can define the mtf of an imaging system. M t f ( f) = | ∫ l s f ( x) e − 2 π i f x d x |.
