Calculate Transformer Inrush Current

Calculate Transformer Inrush Current. The inrush current does not create any permanent fault, but it causes an unwanted switching in the circuit breaker of the transformer. With inrush calculation, user can get results of the inrush current, the ratio of the inrush current to the nominal current, the effective current, the ratio of the effective current to the nominal current as a table and also as a graph depending on time.

What is Inrush Current? Sunpower UK from www.sunpower-uk.com

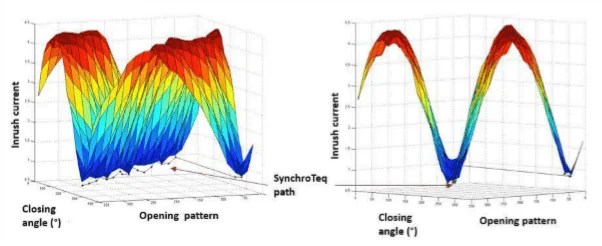

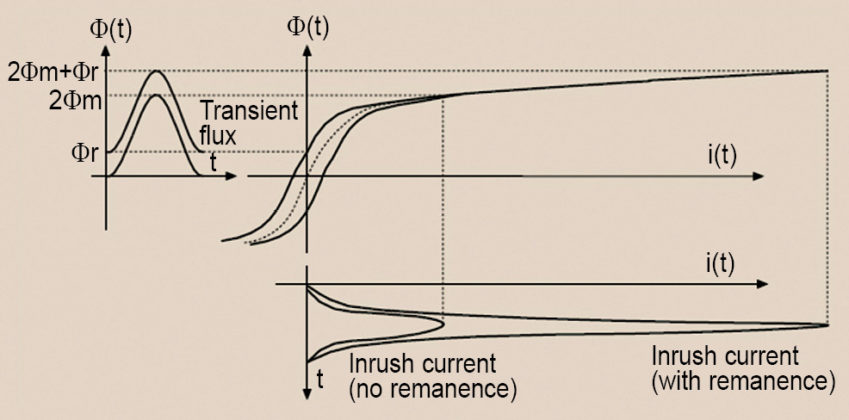

Inrush current is due to a certain amount of residual flux remains in the iron core due to the properties of the magnetic core material. Magnetizing inrush current in transformers results from any abrupt changes of the magnetizing voltage. This paper deals with study of calculation of inrush current in transformer.

Source: www.sunpower-uk.com

We can calculate values for r fe and x m. Therefore, a detailed analysis of the.

Source: alberthafat.blogspot.com

Hence, due to the very high peak of the magnetising current, the core is driven far into saturation. For the explanation of the mechanism causing inrush current in a transformer’s primary winding when

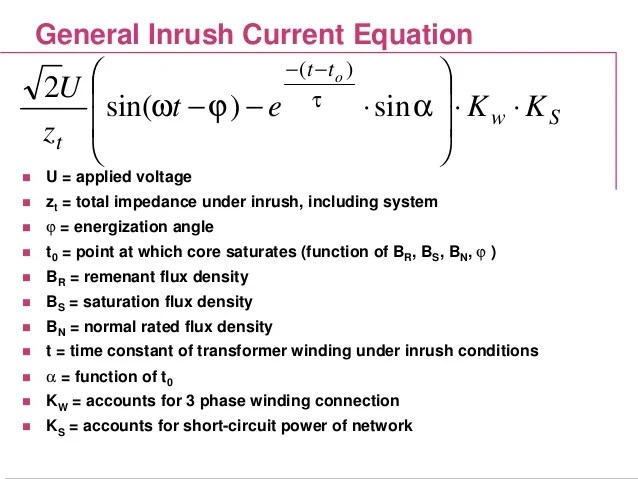

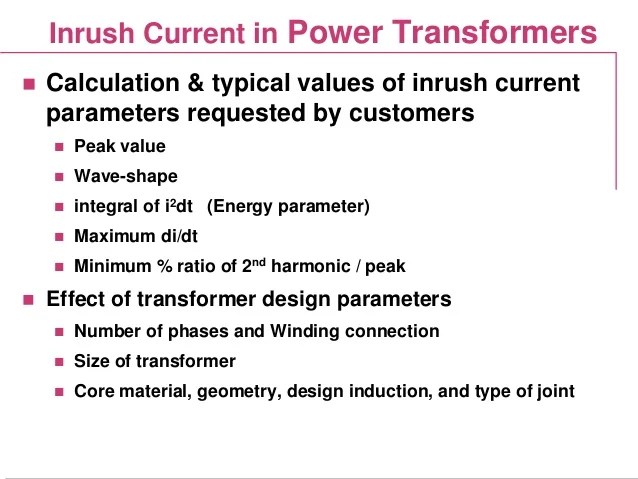

Source: www.slideshare.net

Results from the reapplication of system voltage to a transformer which has been previously deenergized. For a correct result, transformer power rating, frequency.

Source: www.powerandcables.com

The maximum fault level available on the secondary side is: A) v 1 = 4000 v, v 2 = 400 v, transformer rating = 50 kva = v 1 × i 1 = v 2 × i 2

Source: www.electronicsforu.com

The lower the voltage the less inrush; Some factors that determine magnitude and duration of inrush current are:

Source: www.electrical4u.net

E = r×i + n1×dφ/dt. Magnitude and polarity of residual magnetism in core.

Source: alberthafat.blogspot.com

I (a) = s (kva) *1000 / (1.732 * v (v)) if you take the phase to neutral. During the inrush current, the maximum value attained by the flux is over twice the normal flux.

Source: www.electrical4u.net

This happens even when the transformer is. Some factors that determine magnitude and duration of inrush current are:

Source: www.slideshare.net

When a transformer is energized, primary side will experience a inrush current prior to reach transformer stability operating current. Different methods are available to calculate inrush current in transformer.

Source: file.scirp.org

With no load on the transformer, measure the rms current into the transformer, the input voltage, and the real power into the transformer. Recovery inrush, occurs when transformer voltage is restored after having.

Source: alberthafat.blogspot.com

With inrush calculation, user can get results of the inrush current, the ratio of the inrush current to the nominal current, the effective current, the ratio of the effective current to the nominal current as a table and also as a graph depending on time. Results from the reapplication of system voltage to a transformer which has been previously deenergized.

Source: www.researchgate.net

I 1 = primary current, i 2 = secondary current. With inrush calculation, user can get results of the inrush current, the ratio of the inrush current to the nominal current, the effective current, the ratio of the effective current to the nominal current as a table and also as a graph depending on time.

For A Given Transformer With Its Given Inrush Characteristics The Two Things That Change Inrush The Most Are Per Unit Voltage At Time Of Energization And Load On The Other Side Of The Transformer.

Inrush current is due to a certain amount of residual flux remains in the iron core due to the properties of the magnetic core material. Magnetizing inrush current in transformers results from any abrupt changes of the magnetizing voltage. With inrush calculation, user can get results of the inrush current, the ratio of the inrush current to the nominal current, the effective current, the ratio of the effective current to the nominal current as a table and also as a graph depending on time.

Volts Per Turn (V/Turn) Primer Voltage (Kv) Current Density Of Hv (A/Mm2) Inner Diameter Of Hv Winding (Mm) 1/3 Radial Thickness Of Hv Winding (Mm) Electrical Height Of Hv Winding (Mm) Temperature Of Hv Windig At The Moment Of Energyzing (°C) Hv Winding Material.

The inrush current does not create any permanent fault, but it causes an unwanted switching in the circuit breaker of the transformer. I 1 = primary current, i 2 = secondary current. A) v 1 = 4000 v, v 2 = 400 v, transformer rating = 50 kva = v 1 × i 1 = v 2 × i 2

When Transformer Is Energized Its Current Reaches Very High Value Generally Approximately 10 To 20 Times Greater Than Its Rated Current.

For the explanation of the mechanism causing inrush current in a transformer’s primary winding when When transformer is energized its current reaches very high value generally approximately 10 to 20 times greater than its rated current. Therefore, a detailed analysis of the.

Transformer Inrush Currents Can Be Divided Into Three Categories:

The maximum fault level available on the secondary side is: Inrush current in any period, such as formula 1[5] example voltages to enter 5sin(60t) 10cos(110t) 15sin(120t) this inductor current calculator calculate s the current flowing through an inductor based on the voltage, v, across. Since 1994, ametherm has provided the most reliable and effective inrush current limiting solutions available.

This Paper Deals With Study Of Calculation Of Inrush Current In Transformer.

Bring a transformer and generator up together and there is no inrush. Figure 4 equivalent circuit of transformer core. Inrush current in a dry and liquid filled transformers is equivalent to.
